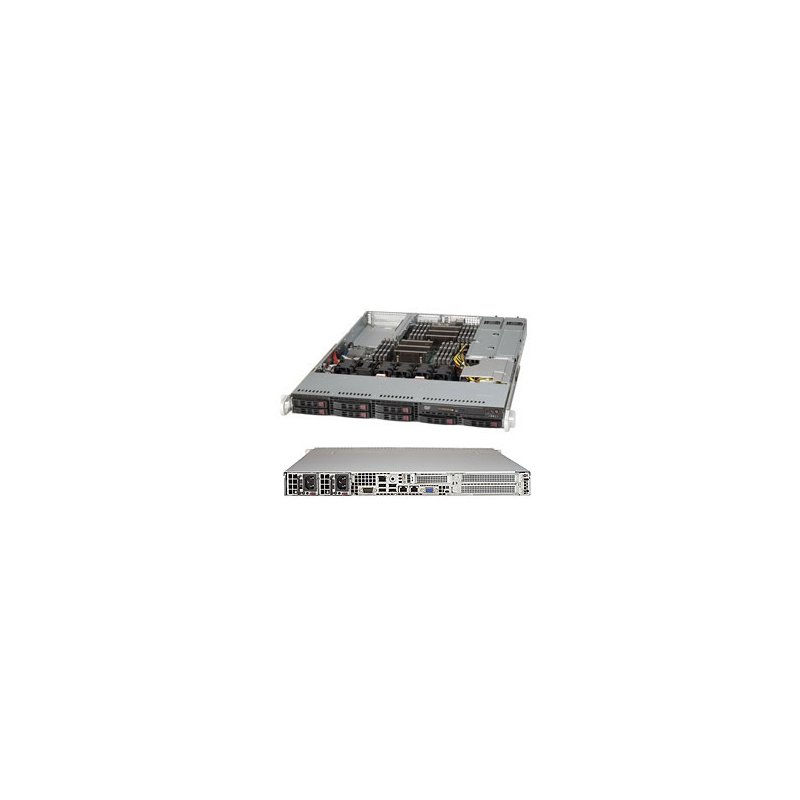

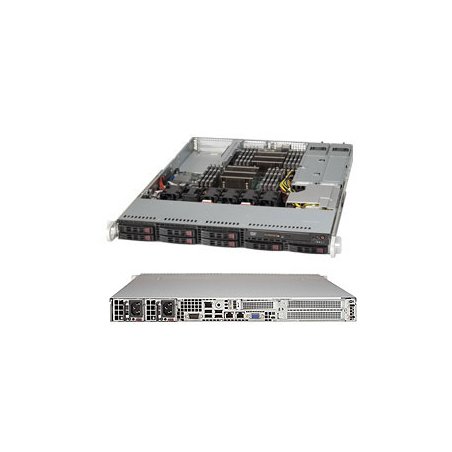

Supermicro Chassis 113AC2-R706WB2

1U SuperChassis 113

Supermicros SC113 1U chassis is optimized for high-end, high performance applications. It is an efficient 1U rackmount design optimized for best performance. It includes 8 hot-swap 2.5" SAS/SATA hard drive bays protected with the SES-II management features, redundant 500W Platinum Level or 600W digital switching high-efficiency power supplies with optimized cooling for all configurations.

- 1U rackmount chassis, support for motherboard size: 12" x 13" E-ATX Optimized for X11 WIO (W series) motherboards
- 8 x 2.5" hot-swap SAS/SATA drive bay
- SAS or enterprise SATA HDD only recommended
- 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
- 1U Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width
- 2 full height expansion slot(s) (Riser Card Required), 1 low-profile expansion slot(s) (Riser Card Required)
- 4 x 40x56mm counter-rotation PWM fan(s)
- Optional 2 x fan for PCI card cooling
